4G5G太阳能摄像头电池管理器专业套装-众为视讯

Y4G-12D- 配置太阳能板-标准50W-2022新晶材料，单晶能量密度大。

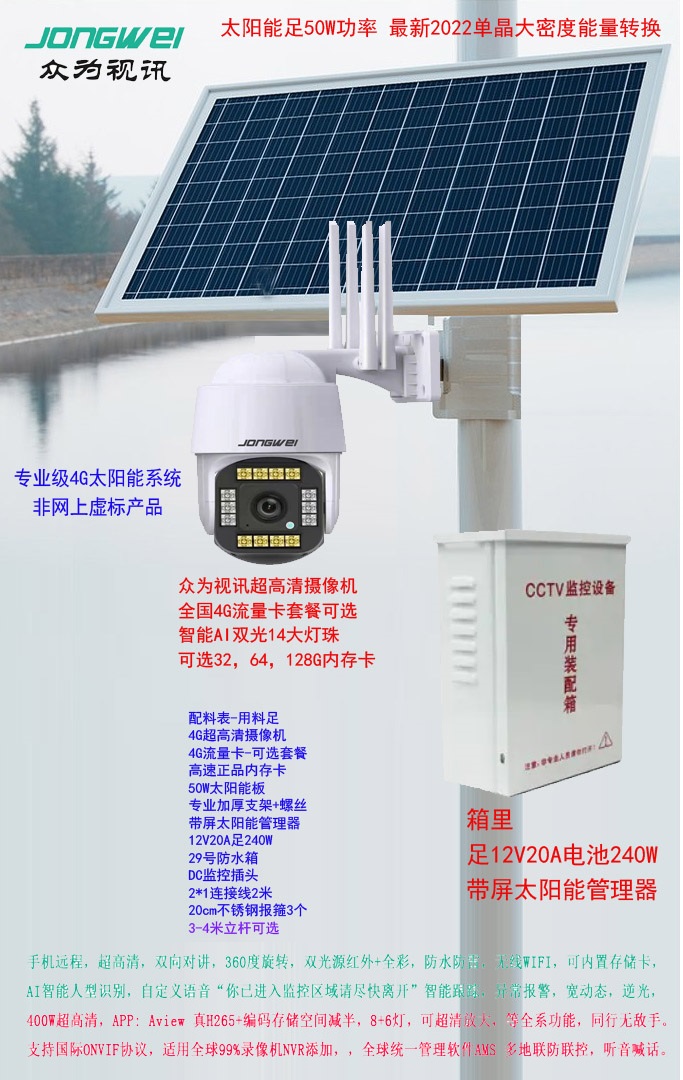

摄像机400W像素+4G流量卡+内存卡（可选 32g+64g+128g）+实测足12v20A电池+太阳能板+太阳能管理器+接线+支架

Performance
Rated Power   [Pmax]	50W
Power Tolerance	±5%
Nominal Voltage	18V
Design Life	25 years





Electrical Characteristics



Maximum Power	[Pmax]	50W±5%
Maximum Power   Voltage [Vmp]		18V±3%
Maximum Power   Current [Imp]		2.73A±3%
Short-Circuit   Current	[Isc]	2.75A±3%
Open-Circuit   Voltage	[Voc]	21.5V±3%
Current   Temperature Coefficient		0.031%/℃
Voltage   Temperature Coefficient		-   0.31%/℃
Power   Temperature Coefficient		-0.42%/℃
Maximum System   Voltage		1000V



Under Standard Test Conditions(STC): Irradiance of 1000W/m2,Am1.5 and 25℃ cell temperature







Mechanical Characteristics



Dimensions：670mm(L) x530mm(W) x30mm(H)



Weight:   3.58kg



Solar Cells: Monocrystalline solar cells,36 cells in a 4x9matrix connected in series



Construction: Front: High-transmission 3.2mm tempered glass; Encapsulate: EVA; Back: TPT



Frame: Clear anodized aluminum alloy Color: silver







Module Warranty:



25-year limited warranty of 80% power output; 10-year limited warranty of 90% power output; 5-year limited warranty of materials and workmanship.

Module Diagram:

注意事项:

1.测试参数误差为±0.3

2.测试电气指标电压参数误差为±5%

3.测试电气指标电流参数误差为±5%

4.不能把太阳能电池投掷入火中

5.进行连接时注意电池极性

6.太阳能电池板必须在规格书指定的温度范围内使用

7.太阳能电池板必须放在干燥通风的地方

8.太阳能电池板要保持干净，如有附着物（落叶、鸟粪、灰尘、阴影等等）

 都会影响太阳能板的使用效果

9.使用时，应该让太阳能电池板充分受光且受光均匀
